Refal Arabia Profex Panel System
Introduction
System Features
System Features
Refal Arabia Profex Panel System is an ideal panel formwork system for all construction sites. Whether the walls and columns change continuously or remain the same throughout the project, Profex solves every type of project successfully. All components are designed to be handled by one or two persons; if no crane is available, panels can be easily carried by hand. If a crane is available, several panels can be assembled into a large unit and transferred together in one go.
System Features
System Features
System Features
- All components are light enough to be carried by hand.
- The system is designed to withstand fresh concrete pressure of 60 kN/m².
- All components arrive at the site ready for immediate use.
- Special profiles forming the frame increase panel strength and ensure a long service life.
- Panel connections are quick and easy using special shaped profiles and "one-blow" clamps.
- Connection is not dependent on fixed holes in the frame, offering total flexibility.
- The frame surrounds the plywood, protecting its edges from damage and preventing
Profex Clamps
Column & Size Versatility
Column & Size Versatility
Profex Clamps connect panels effortlessly; only one hammer blow is enough to create a rigid connection. These clamps are not dependent on frame holes; due to the special shape of the profiles, they can join two panels at any point around the frame. This significantly shortens assembly and disassembly periods.
Column & Size Versatility
Column & Size Versatility
Column & Size Versatility
Using Profex Universal Panels, the same panels can be adjusted for different column sizes. This provides maximum flexibility, as the same column formwork can be reused throughout a project despite varying dimensions. The high resistance of the surrounding profiles allows the panels to withstand high concrete pressure, making the Profex system the ideal choice for projects requiring both precision and speed.
Refal Arabia Profemax Panel System
Introduction
Product Design & Features

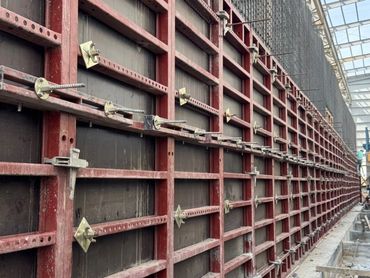

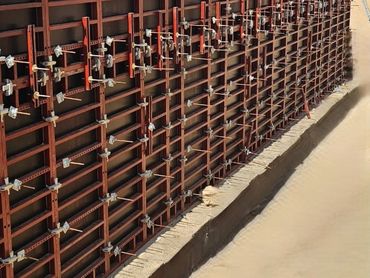

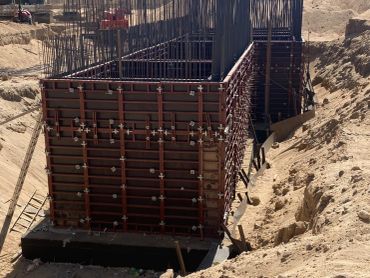

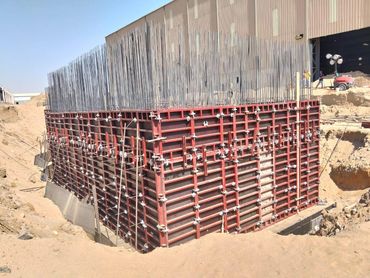

Refal Arabia Profemax System is an ideal column and wall formwork system for sites utilizing cranes. It is engineered to solve every type of project successfully, regardless of whether wall and column dimensions are changing or remaining constant. The high resistance of the surrounding profile allows the panels to withstand extreme concrete pressure, making the Profemax system a highly economical and reliable choice for large-scale operations.
Product Design & Features
Product Design & Features
- The system is designed to withstand fresh concrete pressure of 80 kN/m².
- All components are delivered ready to use, ensuring immediate onsite productivity.
- Special frame profiles increase the strength of the panel and ensure a long service life.
- Panel connections are exceptionally quick and easy due to specially shaped profiles and "one-blow" clamps.
- Connections are not dependent on fixed holes in the frame, offering maximum assembly flexibility.
- The frame surrounds and protects the 18mm thick plywood edges from damage and water penetration.
Profemax Components Overview
Profemax Components Overview
- Profemax Panels: The main component, available in 150 and 270 series, covered with 18mm thick film-coated plywood.
- Universal Panels: Provide easy solutions for columns, stop-ends, and corners.
- Tie-rod & Wing Nut: Built to withstand the intense fresh concrete pressure on the formwork.
- Profex Clamps: Ensure a rigid connection with a single hammer blow at any point around the frame.
- Scaffold Bracket: Used to form a safe working platform for workers during pouring, with a permissible load of 150 kg/m².
- Lifting Bracket: Allows large multi-panel assemblies (up to 15 m²) to be moved safely by crane in one go.
